R-TECH Insulation Panels

R-TECH® Insulation Panels

Ready for Everything

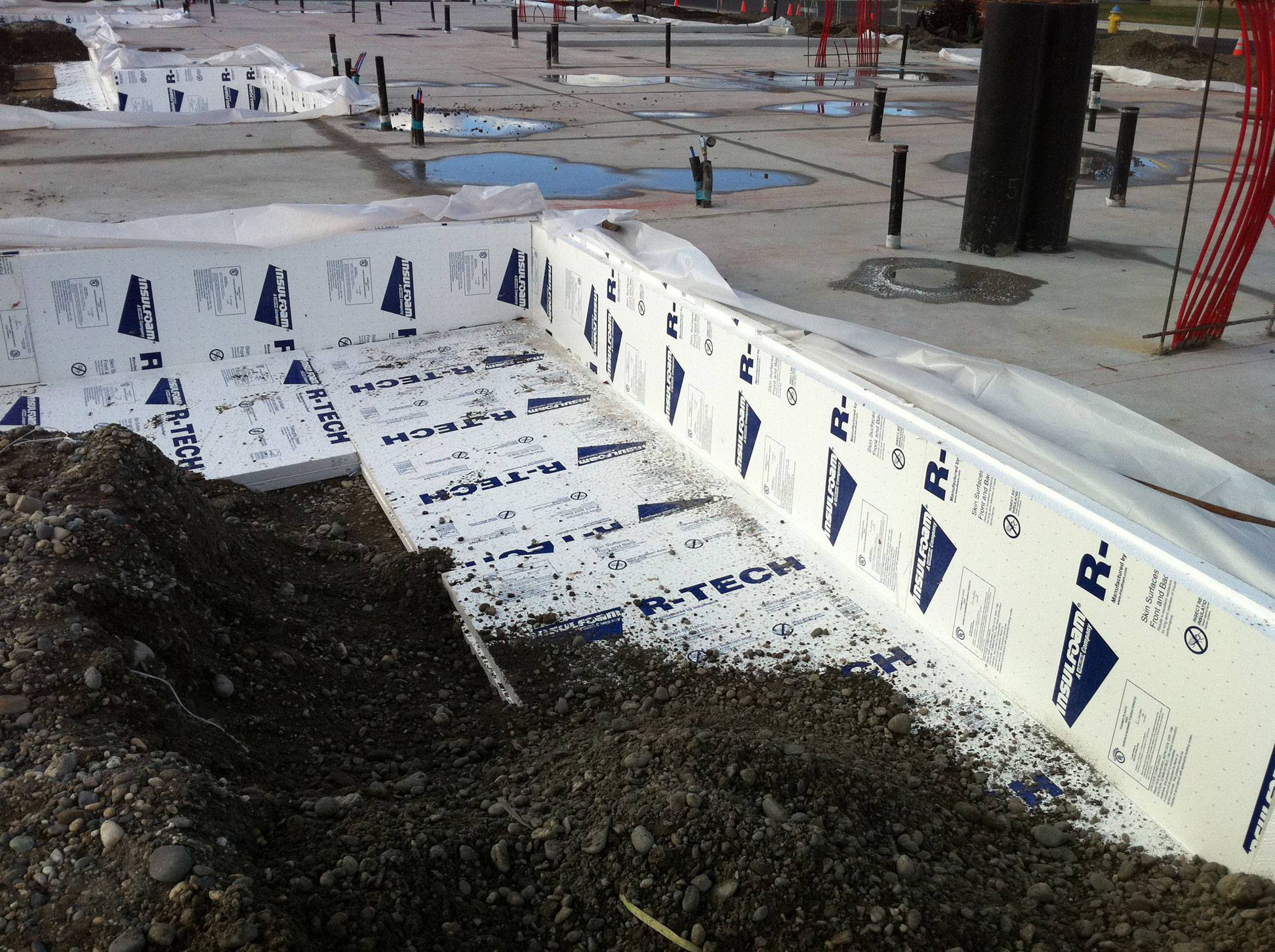

R-TECH has been used successfully for numerous commercial, industrial and residential roofing, wall and below-grade applications.  Panels are available in a wide range of sizes, thicknesses and compressive strengths up to 60 psi.

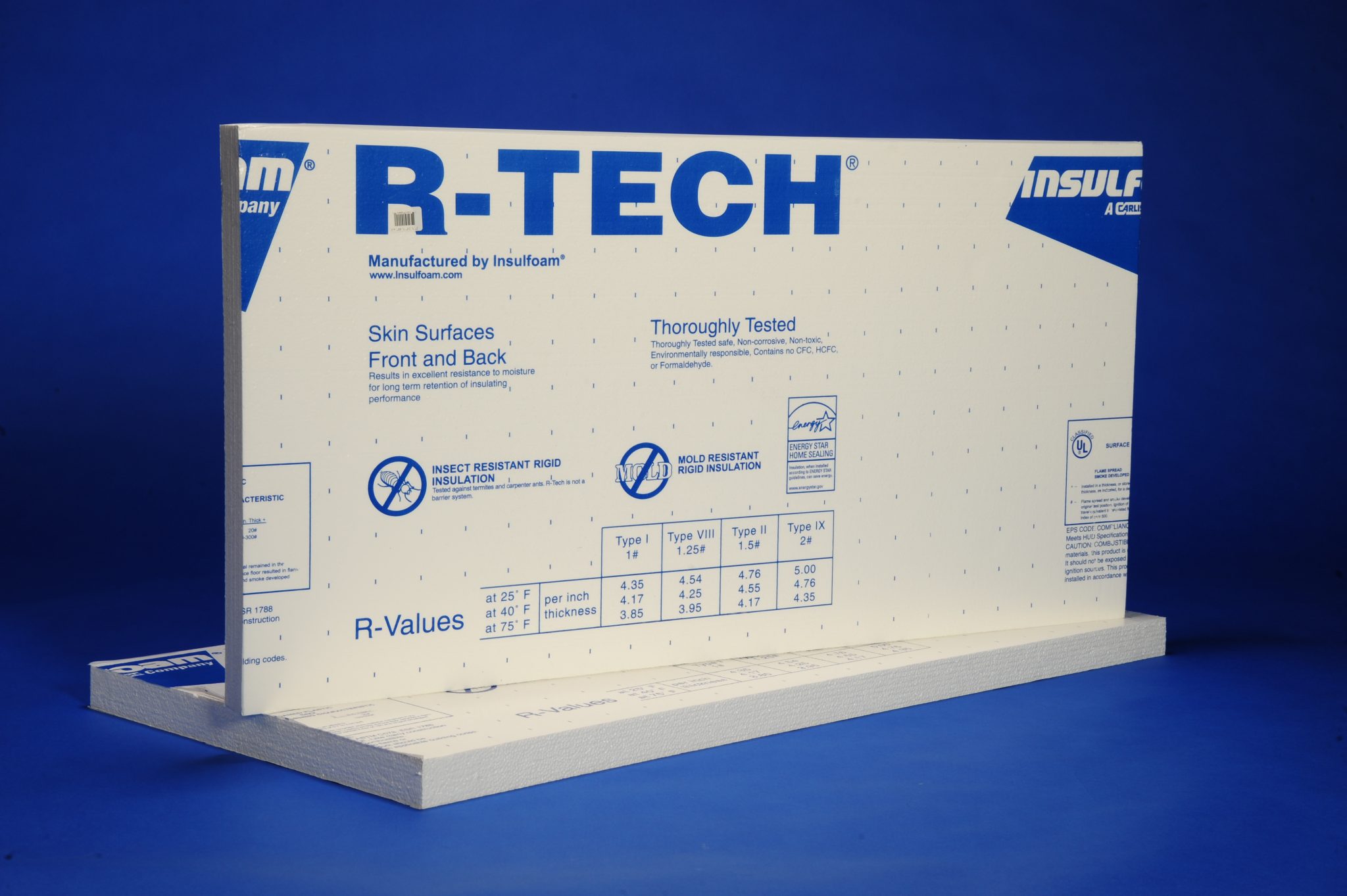

R-TECH® Rigid Foam Insulation

R-Tech Panels are an engineered rigid insulation consisting of a superior closed-cell, lightweight and resilient expanded polystyrene (EPS) with advanced polymeric laminate facers. R-Tech is available with factory-adhered metallic-reflective facers, white facers or a combination of the two. The core of R-Tech is the same high-quality EPS as our InsulFoam insulations and meets or exceeds the requirements of ASTM C578, Type I, Standard Specification for Rigid, Cellular Polystyrene Thermal Insulation. In addition, R-Tech has excellent dimensional stability, compressive strength and water resistance properties. R-Tech can contribute toward LEED® credits. Consult local building codes and membrane manufacturers for system requirements.

Advantages

  • Environmentally Friendly. Does not contain any dyes, 100% recyclable foam.
  • Water Resistance. Facers provide a surface that is virtually impervious to moisture.
  • Durable. With a polymeric facer on either side of it, R-Tech is extremely flexible and durable.
  • Enhanced R-values. With no thermal drift over its entire service life, the product is eligible for an Insulfoam 20-year Thermal Performance Warranty.
  • Cost Effective. Typically less expensive than other comparable insulation products

Gallery
